One Stop Custom PCB Assembly PCBA Service 4 Layer Multilayer FR4 PCB Circuit Board Manufacturer

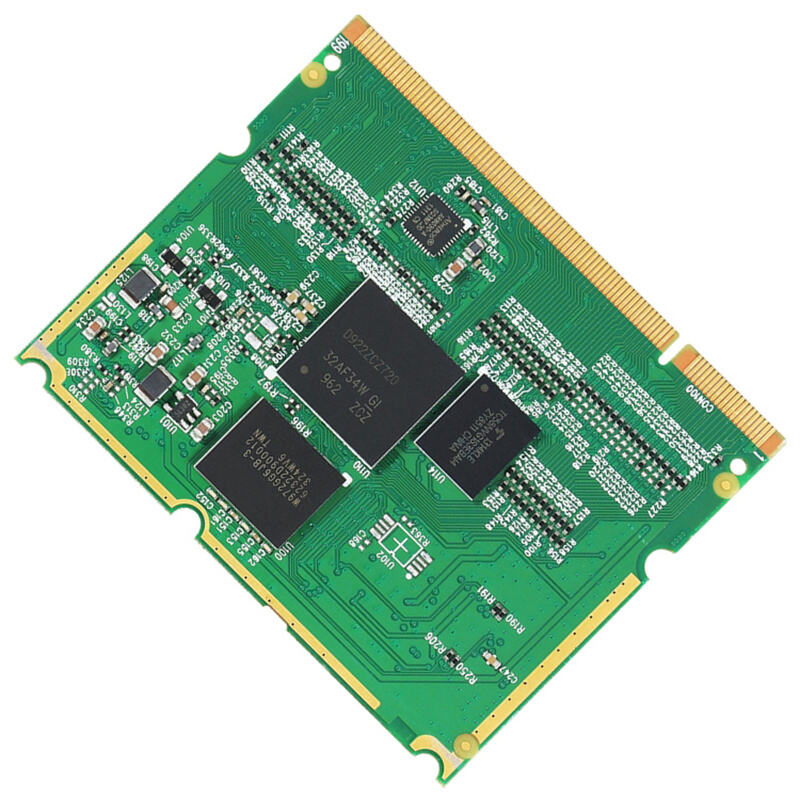

This compact System-on-Module (SOM) PCB is engineered for high-performance embedded computing applications, featuring a robust green FR-4 substrate and advanced multi-layer signal routing. It integrates a powerful central processing unit (CPU), high-speed memory chips, and peripheral control ICs, delivering exceptional computational power and data storage capacity in a miniaturized form factor.

The gold-plated edge connector (gold finger interface) enables reliable, high-speed connection to carrier boards, supporting seamless integration into industrial control systems, embedded gateways, and intelligent edge computing devices. Precision SMD component placement and impedance-controlled trace design ensure stable signal integrity for high-speed data transmission, making it ideal for applications requiring real-time processing and low latency.

Compliant with IPC Class 2/3 and RoHS standards, this SOM module undergoes rigorous quality and environmental testing to guarantee long-term reliability in harsh operating conditions. It serves as a turnkey solution for reducing development time and accelerating time-to-market for advanced embedded systems.

· Industrial edge computing & IoT gateways

· Embedded control systems & PLCs

· Automotive infotainment & telematics modules

· Medical device computing & diagnostic equipment

· Aerospace & military embedded computing systems

1. High Integration: Dense component layout minimizes system size while maximizing computational and storage capabilities.

2. High-Speed Connectivity: Gold-plated edge connector ensures reliable, low-loss signal transmission between module and carrier board.

3. Signal Integrity: Impedance-controlled trace design minimizes crosstalk and signal loss for high-speed data processing.

4. Industrial Reliability: Wide temperature range and robust component selection ensure stable operation in harsh environments.

5. Rapid Development: Turnkey SOM design reduces hardware development time and simplifies system integration.

Q: Can the core processor and memory configuration be customized?

A: Yes, we offer full customization of CPU model, memory capacity, and peripheral interfaces to meet specific project requirements.

Q: What is the data transfer speed supported by the gold finger interface?

A: The interface supports high-speed data rates up to 10Gbps+ (customizable based on interface protocol and design).

Q: Does this module support operating system (OS) porting?

A: Yes, we provide BSP (Board Support Package) and driver support for popular embedded OSes (Linux, Android, RTOS).
