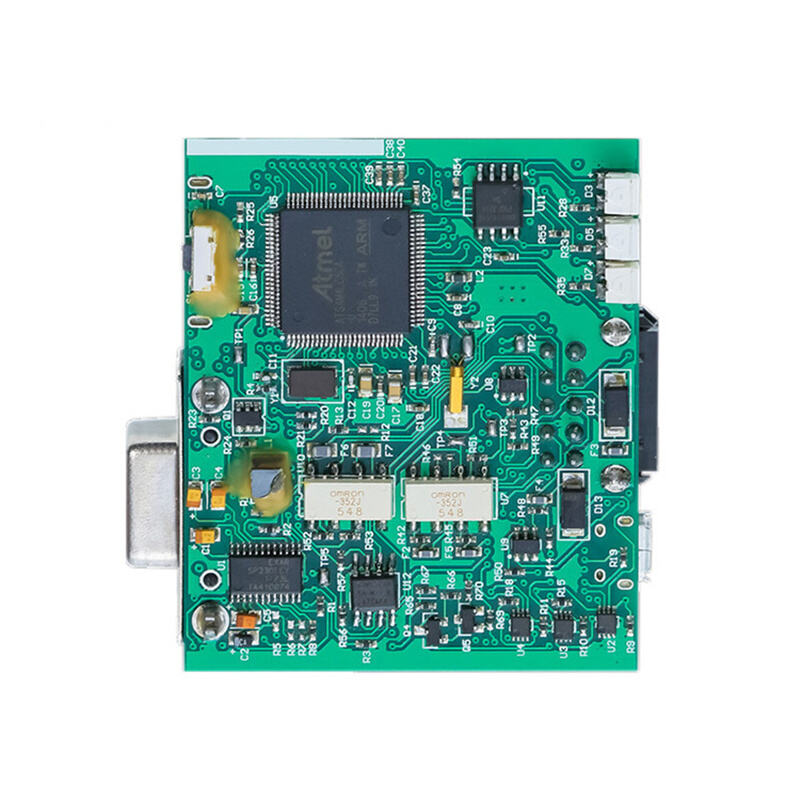

This compact embedded control PCB is built around a high-performance Atmel ARM microcontroller, designed for reliable industrial control and communication applications. Featuring a robust green FR-4 substrate and precision SMD assembly, it integrates Omron signal relays, D-SUB serial interface, and multiple peripheral connectors to deliver stable control and data transmission.
The board’s optimized circuit layout ensures excellent signal integrity and power efficiency, while industrial-grade components (including Omron relays) guarantee long-term reliability in demanding environments. With a compact form factor and versatile interface options, it is ideal for industrial sensor data acquisition, PLC extensions, serial communication gateways, and small-scale automation control systems.
Compliant with RoHS and IPC Class 2/3 standards, this PCB undergoes rigorous quality testing to ensure stable operation. It provides a turnkey solution for reducing development time and simplifying integration into industrial control products.
| Place of Origin | China (Mainland) |
| Brand Name | Customizable (OEM/ODM supported) |
| Model Number | EMB-ARM-CTRL-001 (customizable) |
| Certification | RoHS, IPC Class 2/3, CE |
| Base Material | FR-4 Glass Epoxy |
| Layers | 4 layers (high-density design) |
| Board Thickness | 1.6mm |
| Surface Finish | ENIG / HASL (lead-free) |
| Solder Mask | Green |
| Core Controller | Atmel ARM Series Microcontroller |
| Key Components | Omron signal relays (G6K-352J), SP3232E transceiver IC |
| Interfaces | D-SUB serial port, pin headers, power/communication connectors |
| Power Input | 5V/12V DC (customizable) |
| Operating Temperature | -20°C ~ +70°C |
| Assembly Type | High-precision SMT + Through-Hole mixed assembly |
· Industrial serial communication gateways
· PLC I/O extension modules
· Sensor data acquisition & processing systems
· Small-scale automation equipment control
· Access control & security systems
1. Powerful ARM Core: Atmel ARM MCU delivers high computational performance and low power consumption.
2. Reliable Relay Control: Omron signal relays ensure stable, long-life switching for industrial signals.
3. Robust Communication: D-SUB serial interface supports reliable long-distance data transmission.
4. Compact Integration: Dense component layout minimizes system size while maximizing functionality.
5. Industrial Reliability: High-quality components and strict testing guarantee stable operation in harsh environments.
Q: Can the Atmel ARM MCU model be customized?
A: Yes, we offer full customization of core chip selection, peripheral configuration, and interface layout to meet specific project requirements.
Q: What is the switching life of the Omron relays?
A: The Omron G6K series relays support up to 100,000+ mechanical switching operations, ensuring long service life.
Q: Does this board support RS-232 communication?
A: Yes, the onboard SP3232E transceiver enables reliable RS-232 serial communication via the D-SUB interface.
