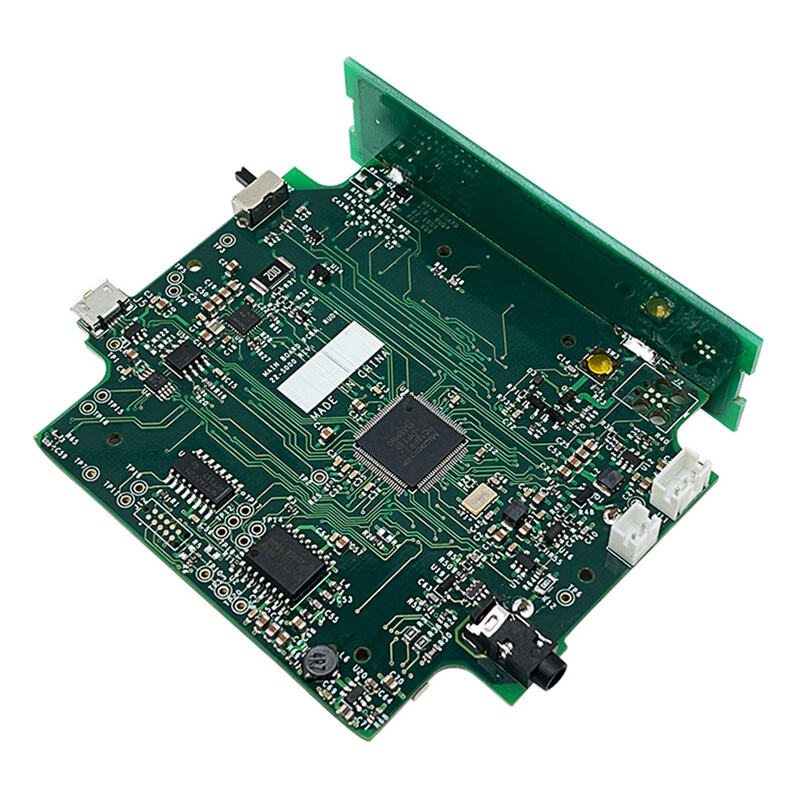

This compact embedded control PCB assembly is designed for smart consumer electronics and industrial control applications, featuring a high-performance microcontroller (MCU) at its core. Built on a robust green FR-4 substrate, the board integrates a rich set of interfaces including USB, 3.5mm audio jack, and terminal block connectors, enabling seamless data communication, audio I/O, and peripheral device connection.
With dense SMD component placement and precise trace routing, this PCB ensures stable signal transmission and efficient power management. The "MADE IN CHINA" marking reflects reliable domestic manufacturing, while compliance with RoHS and IPC standards guarantees long-term performance in diverse operating environments. It is an ideal turnkey solution for smart home devices, portable audio equipment, industrial sensors, and embedded control systems.
| Place of Origin | China (Mainland) |
| Brand Name | Customizable (OEM/ODM supported) |
| Model Number | EMB-PCB-MULTI-001 (customizable) |
| Certification | RoHS, IPC Class 2/3, CE |
| Base Material | FR-4 Glass Epoxy |
| Layers | 4 layers (high-density design) |
| Board Thickness | 1.6mm |
| Surface Finish | ENIG / HASL (lead-free) |
| Solder Mask | Green |
| Core Chip | High-performance 32-bit MCU (customizable model) |
| Key Interfaces | USB Type-A/B, 3.5mm Audio Jack, Terminal Blocks, Pin Headers |
| Power Input | 5V DC (via USB or terminal block) |
| Operating Temperature | -20°C ~ +70°C |
| Assembly Type | SMT + Through-Hole mixed assembly |
· Smart home control devices & IoT gateways
· Portable audio players & multimedia devices
· Industrial sensor modules & data acquisition systems
· Consumer electronics (smart toys, handheld devices)
· Embedded control systems for automotive & medical peripherals
1. Rich Interface Integration: Combines USB, audio, and terminal block interfaces for versatile connectivity.
2. High-Density Design: Compact form factor optimizes space usage for portable and embedded applications.
3. Stable Performance: Precision PCB layout and industrial-grade components ensure reliable operation.
4. Turnkey Solution: Fully assembled PCB reduces development time and simplifies system integration.
5. Customizable Design: Flexible MCU selection and interface configuration to meet project-specific need.
Q: Can the MCU and interface configuration be customized?
A: Yes, we offer full customization of core chip selection, interface layout, and component placement to match your project requirements.
Q: What is the power input method for this PCB?
A: It supports 5V DC input via USB port or dedicated terminal block, providing flexible power supply options.
Q: Is this PCB assembly compatible with lead-free soldering processes?
A: Yes, all components and surface finishes are RoHS-compliant, fully supporting lead-free assembly.
