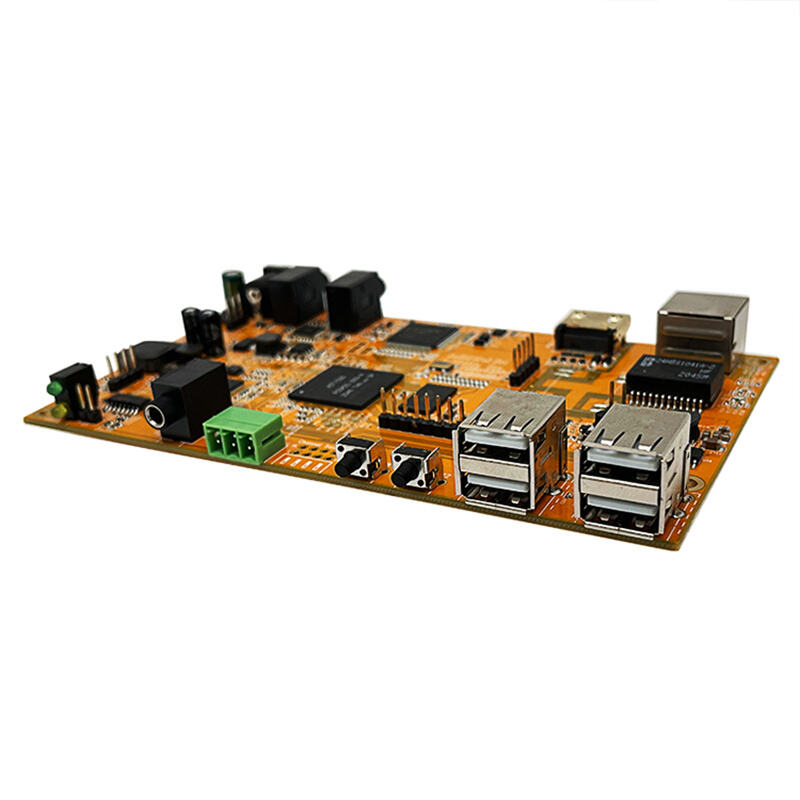

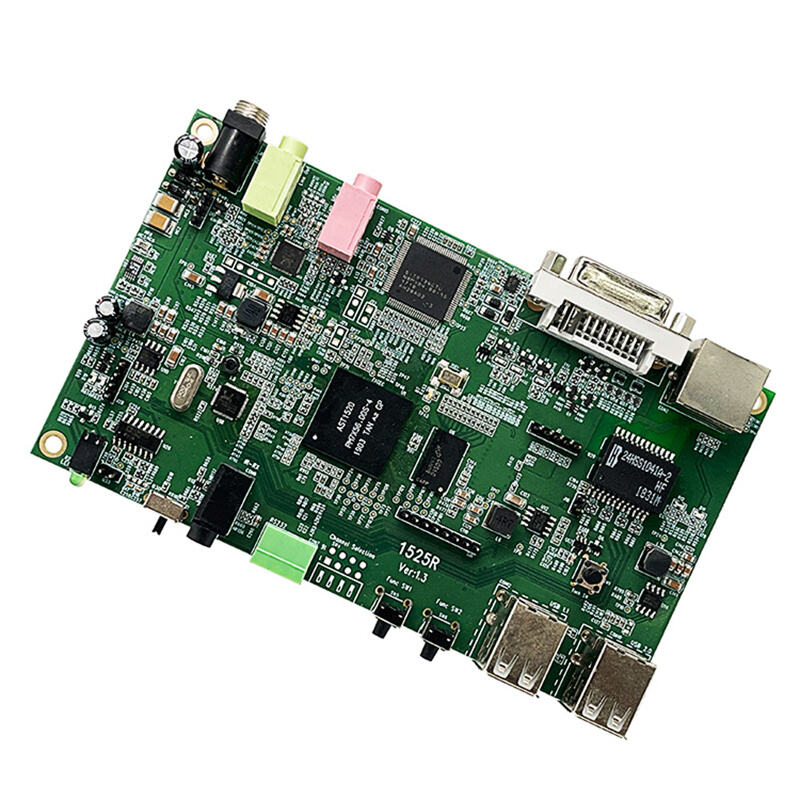

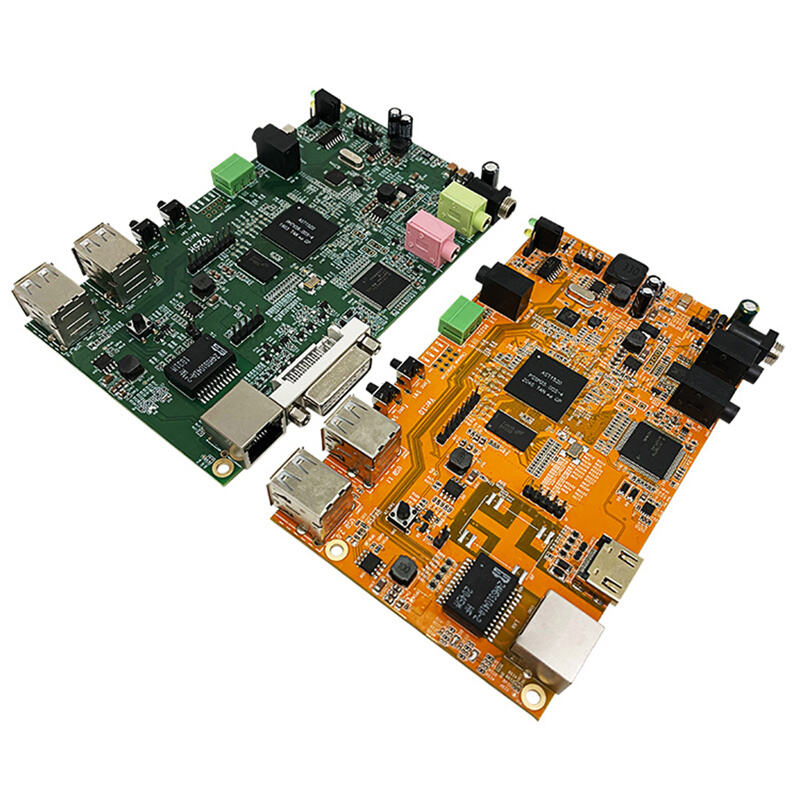

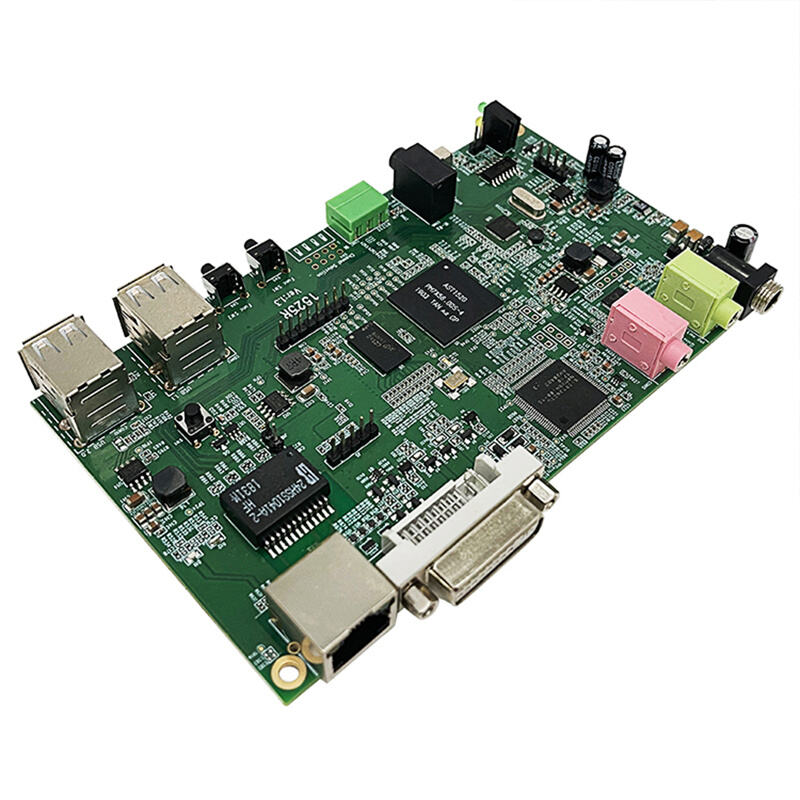

This bundle includes two high-performance custom PCB assemblies, available in classic green and vibrant orange solder mask finishes, engineered for multimedia processing and multi-interface connectivity applications. Built on premium FR-4 substrates, both boards feature dense surface-mount device (SMD) integration, high-speed signal traces, and robust power management circuits to ensure stable operation in demanding environments.
Equipped with a comprehensive range of interfaces—including USB, RJ45 network ports, audio jacks, and video transmission connectors—these PCBs deliver seamless data communication and multimedia signal processing. Paired with advanced application-specific integrated circuits (ASICs) and high-capacity memory chips, they offer exceptional computational efficiency and low power consumption, making them ideal choices for industrial control systems, multimedia decoders, network communication gateways, and smart multimedia terminals.
Compliant with strict IPC standards and RoHS regulations, each PCB undergoes rigorous quality testing to guarantee long-term reliability. Whether for prototype development or mass production, this dual-color PCB bundle provides flexible design options and consistent performance to meet diverse project requirements.
| Place of Origin | China (Mainland) |
| Brand Name | Customizable (OEM/ODM supported) |
| Model Number | PCB-BUNDLE-MEDIA-001 (customizable) |
| Certification | ISO9001, RoHS, IPC Class 2/3 |
| Base Material | FR-4 Glass Epoxy (High Tg optional) |
| Layers | 4-6 layers (customizable) |
| Board Thickness | 1.6mm (customizable) |
| Surface Finish | ENIG / HASL (Lead-free optional) |
| Solder Mask Colors | Green, Orange (other colors available) |
| Core Components | High-speed ASICs, large-capacity memory chips |
| Key Interfaces | USB 2.0/3.0, RJ45 (Ethernet), Audio Jack, Video Port |
| Power Input | 12V DC (customizable) |
| Operating Temperature | -40°C ~ +85°C |
· Multimedia decoders & HD video processing devices
· Industrial network communication gateways & PLCs
· Smart home multimedia hubs & streaming devices
· Automotive infotainment systems & vehicle control units
· High-end consumer electronics & professional audio-visual equipment
1. Dual-Color Flexibility: Green (standard) and Orange (custom) finish options for brand identification or visual differentiation.
2. High Integration: Dense IC packaging and multi-interface design reduce external component count and system size.
3. Signal Integrity: Precision trace routing minimizes crosstalk for high-speed data and video transmission.
4. Reliable Interfaces: Heavy-duty connectors ensure stable connectivity in continuous operation.
5. Quality Assurance: Full traceability and third-party testing guarantee compliance with international quality standards.
Q: What is the difference between the green and orange PCBs besides color?
A: The core functionality and specifications are identical; the color difference is primarily for cosmetic branding or project distinction, and we can customize other colors upon request.
Q: Can you replicate the exact layout and component placement for a specific design?
A: Yes, we provide full reverse engineering support and exact layout replication, including footprint matching and trace optimization.
Q: What is the typical lead time for mass production?
A: Mass production lead time is typically 15-25 days, with prototype assembly available within 7-10 days for urgent projects.
