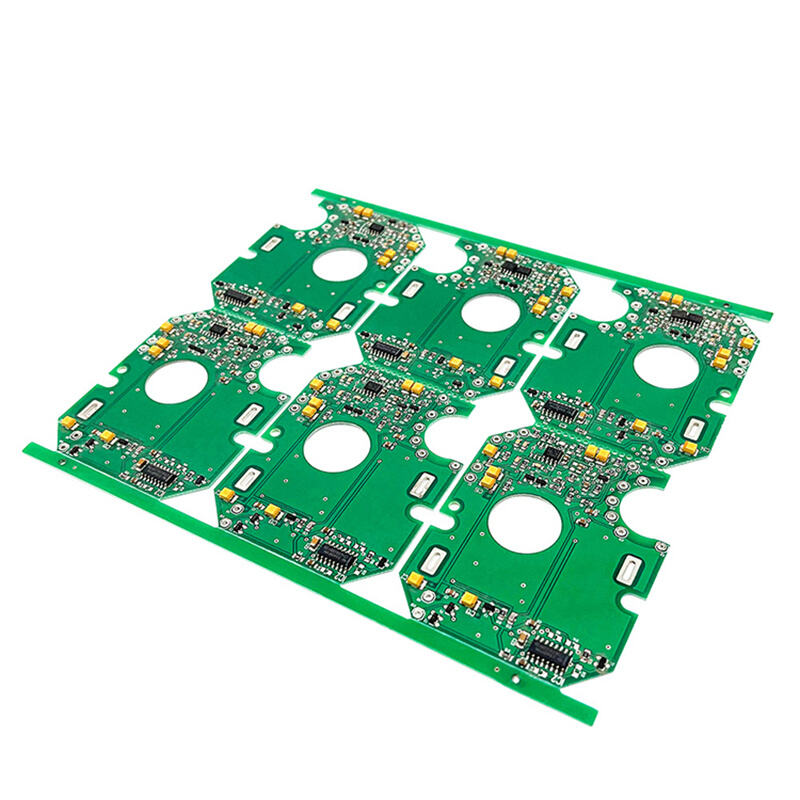

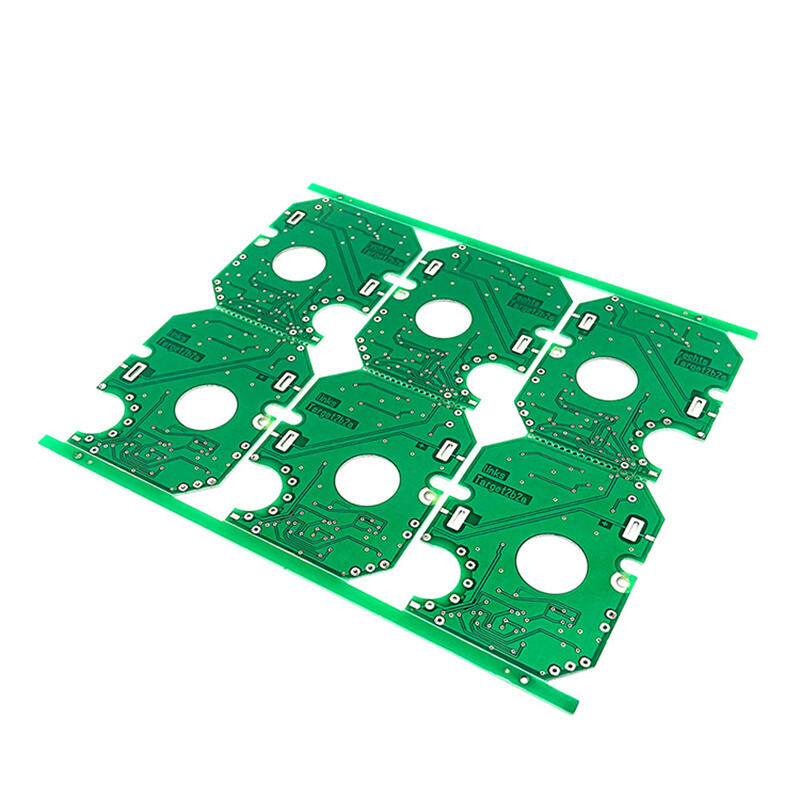

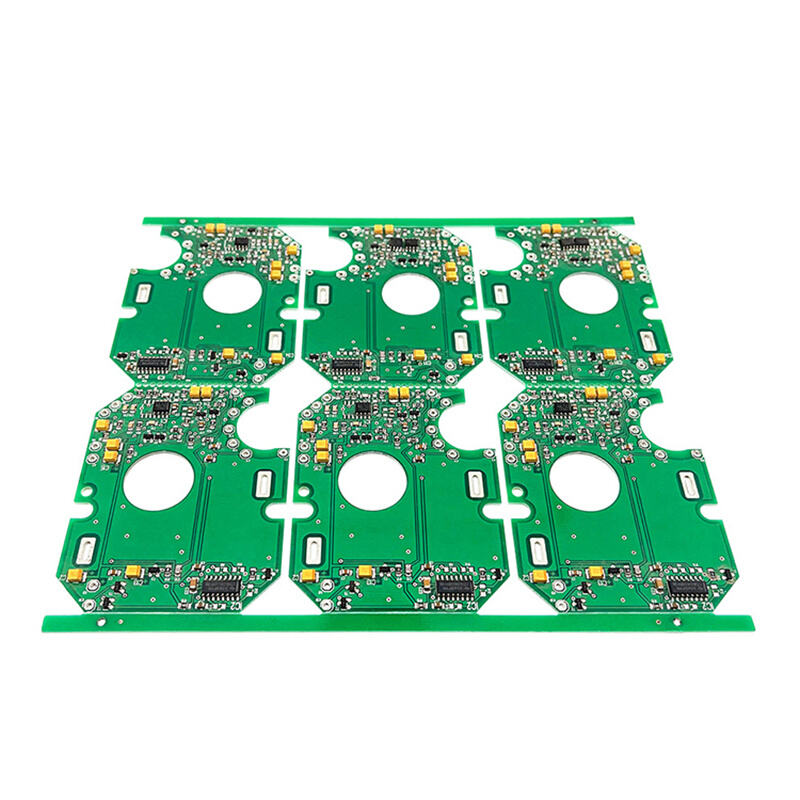

This high-precision 6-in-1 panelized PCB board is manufactured with advanced PCB fabrication technology, featuring a green solder mask and unique special-shaped cutout design. The panelized structure optimizes production efficiency, reduces handling costs, and improves overall yield during mass manufacturing.
Built on a high-quality FR-4 substrate, the PCB ensures excellent mechanical stability and electrical performance. With precise trace routing and component pads, it supports high-density component integration, making it ideal for precision electronic devices, automotive components, and special industrial applications. Compliant with IPC and RoHS standards, this board delivers reliability and durability for long-term operation.
| Place of Origin | China (Mainland) |
| Brand Name | Customizable (OEM/ODM supported) |
| Model Number | SPECIAL-PCB-009 (customizable) |
| Certification | ISO9001, RoHS, IPC Class 2/3 |
| Base Material | FR-4 (Tg130/Tg150 optional) |
| Layers | 2-4 layers (customizable) |
| Board Thickness | 1.6mm (customizable) |
| Surface Finish | HASL / ENIG / Immersion Gold |
| Solder Mask | Green (other colors available) |
| Panel Structure | 6-in-1 array (integrated panel) |
| Special Feature | Custom special-shaped cutout for component placement |
| Minimum Trace Width | 0.1mm (customizable) |
| Minimum Hole Size | 0.2mm (customizable) |
· Precision electronic components & sensors
· Automotive electronics & small-sized control modules
· Specialized industrial devices & instrumentation
· Consumer electronics with custom form factors
1. Panelized Efficiency: 6-in-1 integrated panel maximizes production throughput and reduces per-unit cost.
2. Custom Shape Design: Precision CNC machining supports unique cutout structures to match specific mechanical needs.
3. High Stability: FR-4 substrate and robust circuit design ensure reliable performance in harsh environments.
4. Cost-Effective: Optimized panel layout minimizes material waste and assembly complexity.
5. Quality Compliance: Strict quality control meets international standards for electrical and mechanical safety.
Q: Can this panelized PCB be separated into individual boards easily?
A: Yes, the panel is designed with standard V-cut or mouse-bite structures for easy separation during assembly.
Q: What is the minimum order quantity (MOQ) for this custom PCB?
A: The MOQ is flexible, starting from 10 pieces for prototypes and 100+ pieces for mass production.
Q: Is the special-shaped cutout accurate enough for my component placement?
A: Yes, we use high-precision CNC machining with a tolerance of ±0.1mm to ensure a perfect fit for your components.
