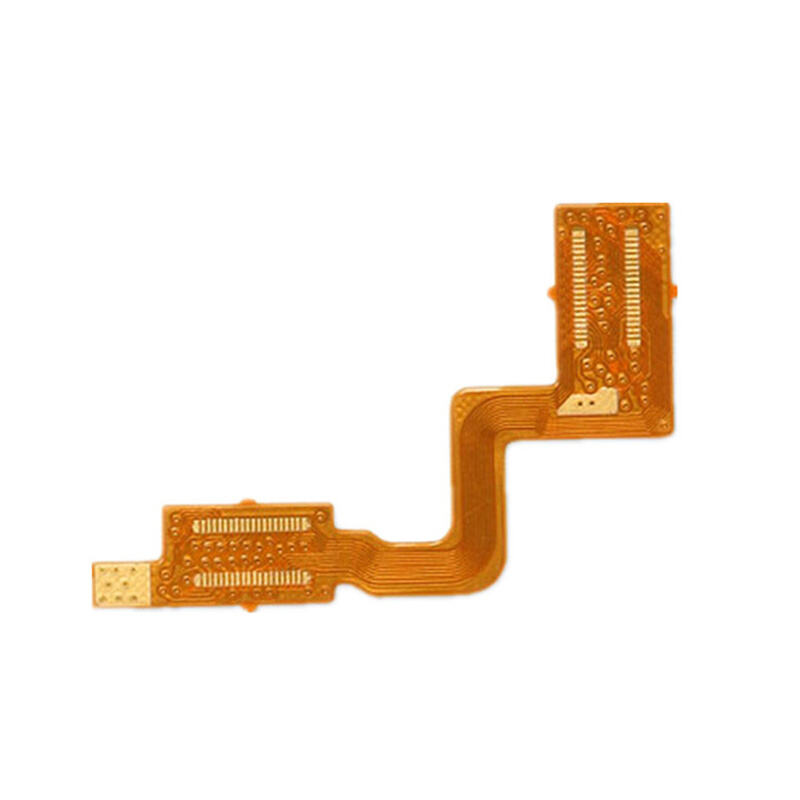

Custom Z-Shaped Flexible Printed Circuit (FPC), High Precision Bendable FPC for Device Interconnection

This custom Z-shaped flexible printed circuit (FPC) is designed to solve the challenge of compact, multi-directional signal and power transmission in electronic devices. Made from high-performance polyimide (PI) material, it features excellent flexibility, thinness, and durability, allowing it to be bent, folded, and routed through tight, irregular spaces that rigid PCBs cannot accommodate.

With precision-etched copper circuits and carefully designed trace layouts, this FPC ensures stable signal integrity and efficient power delivery, even in dynamic bending scenarios. Its unique Z-shaped geometry enables seamless interconnection between different device modules, reducing assembly complexity and optimizing internal space utilization. The advanced manufacturing process guarantees high reliability, including resistance to temperature fluctuations, chemical corrosion, and repeated mechanical stress, making it suitable for long-term use in various electronic products.

We offer full customization services, including shape modification, layer count adjustment, pin definition, and impedance control, to meet the specific technical requirements of your application. Whether for consumer electronics, wearable devices, automotive electronics, or industrial equipment, this Z-shaped FPC provides a flexible, efficient, and reliable interconnection solution that helps streamline product design and accelerate time-to-market.

· Consumer Electronics: Used in foldable smartphones, tablets, and portable audio devices for multi-directional module interconnection.

· Wearable Devices: Integrated into smartwatches, fitness trackers, and hearing aids for compact, flexible signal routing.

· Automotive Electronics: Applied in in-vehicle cameras, sensor modules, and interior lighting systems to fit limited space.

· Industrial Equipment: Utilized in handheld scanners, medical devices, and IoT sensors for reliable flexible interconnection.

1. Custom Shape Design: Z-shaped geometry enables precise multi-directional routing, ideal for complex device layouts.

2. High Flexibility: Ultra-thin PI material supports repeated bending and folding without compromising circuit performance.

3. Space Optimization: Minimizes device internal volume, allowing for more compact and lightweight product design.

4. Signal Stability: Precision trace layout ensures low signal loss and stable transmission in dynamic environments.

5. Full Customization: Tailored to your specific shape, pin count, layer structure, and electrical requirements.

Q: Can the Z-shape of this FPC be modified to other custom geometries?

A: Yes, we fully support custom shape design, including L-shaped, U-shaped, and complex 3D contours, to match your device’s mechanical layout.

Q: What is the minimum bend radius for this FPC?

A: The minimum bend radius depends on layer count and thickness; typically, it ranges from 0.3mm to 1.0mm, and we can optimize it for your application.

Q: How long is the lead time for custom FPC samples?

A: Sample lead time is usually 3–7 working days, while mass production lead time is 7–15 working days, depending on order quantity and design complexity.

Q: Is this FPC compatible with surface-mount component assembly?

A: Yes, we can provide SMT component assembly services on this FPC, integrating resistors, capacitors, and other small components as needed.
