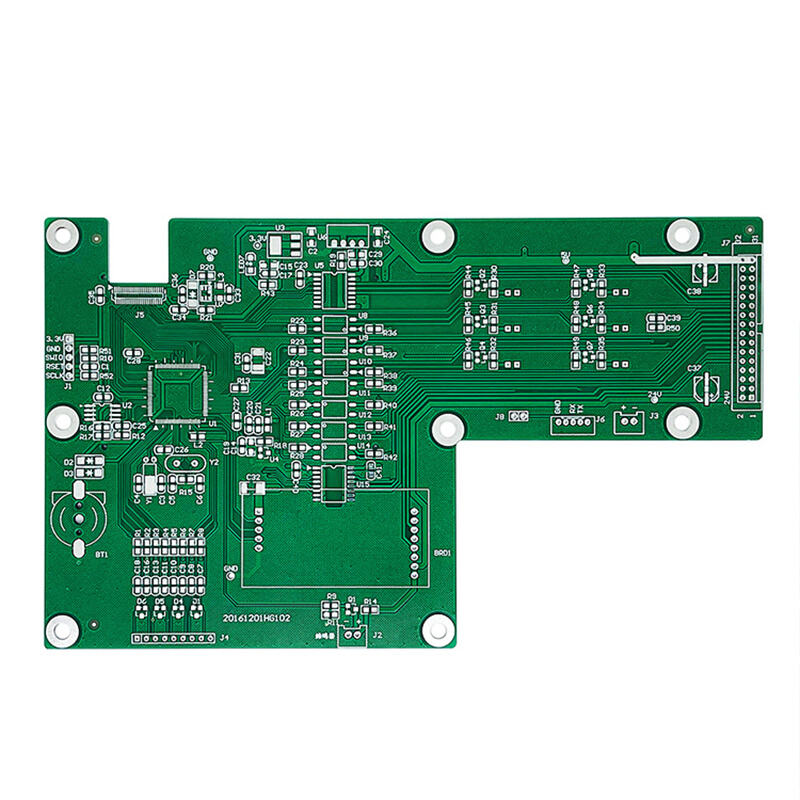

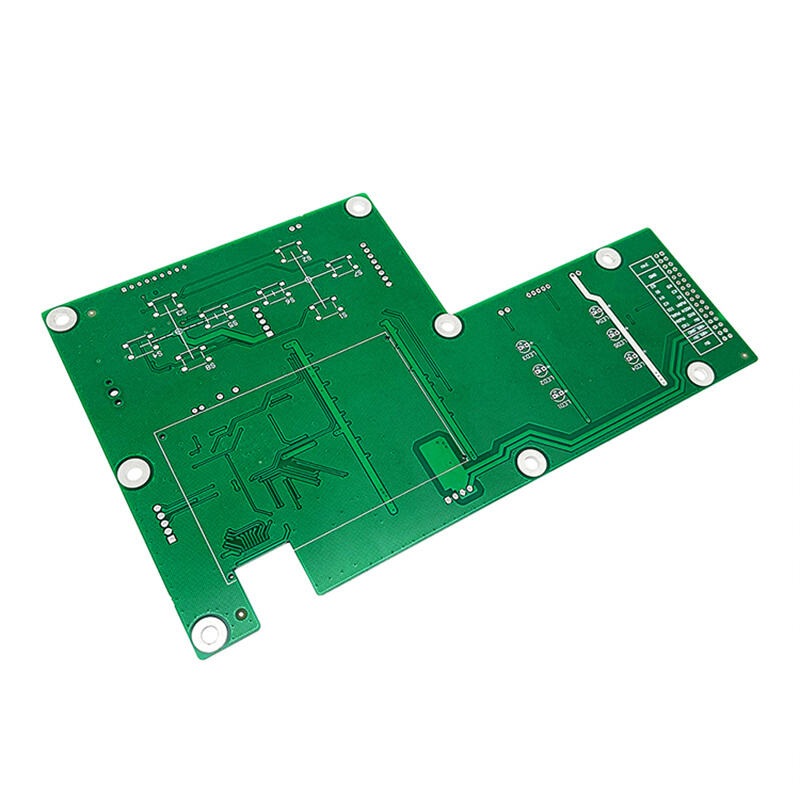

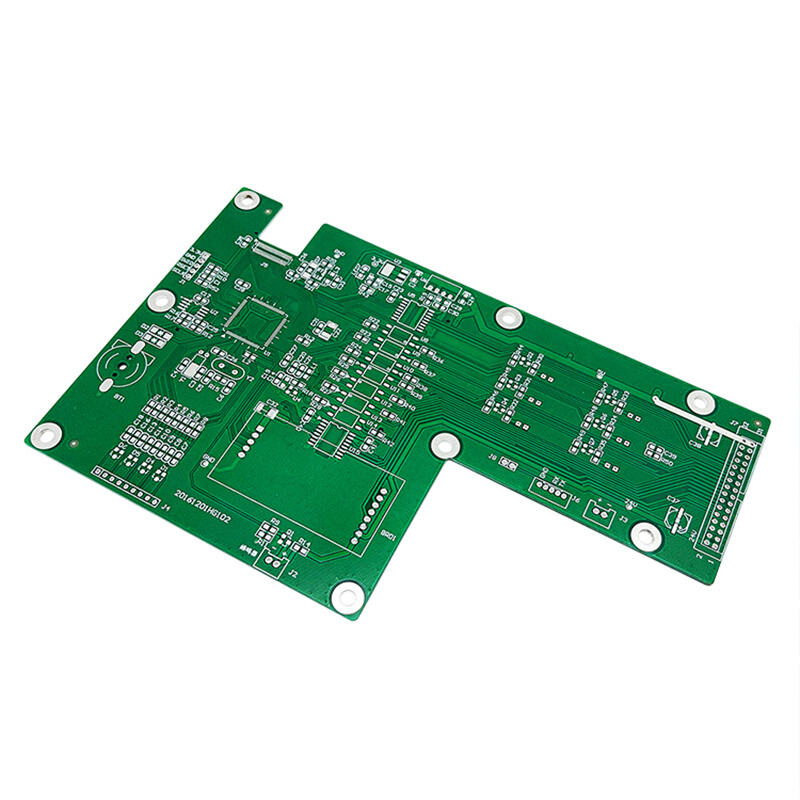

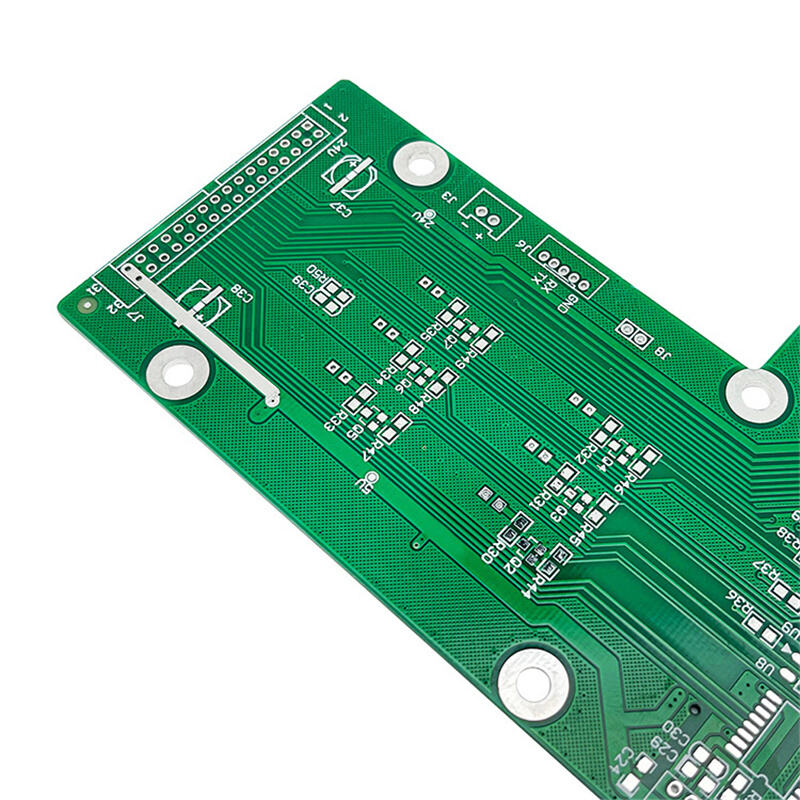

This custom L-shaped multilayer PCB board is engineered for industrial control systems, featuring a unique right-angle form factor to fit compact device enclosures. Built on a high-quality FR-4 substrate with green solder mask, it integrates precise signal traces, component pads, and mounting holes to support high-density component placement and stable signal transmission.
Designed with advanced PCB fabrication technology, this board ensures excellent electrical performance and mechanical stability, making it ideal for industrial automation, control modules, and specialized electronic devices. Compliant with IPC and RoHS standards, it offers reliable long-term operation in harsh industrial environments, providing a cost-effective solution for custom electronic design and mass production.
| Place of Origin | China (Mainland) |
| Brand Name | Customizable (OEM/ODM supported) |
| Model Number | L-PCB-IND-001 (customizable) |
| Certification | ISO9001, RoHS, IPC Class 2/3 |
| Base Material | FR-4 Glass Epoxy (High Tg optional) |
| Layers | 4-6 layers (customizable) |
| Board Thickness | 1.6mm (customizable) |
| Surface Finish | HASL / ENIG / Immersion Gold |
| Solder Mask | Green (other colors available) |
| Shape | Custom L-shaped (right-angle form factor) |
| Minimum Trace Width | 0.1mm (customizable) |
| Minimum Hole Size | 0.2mm (customizable) |
| Mounting Holes | Pre-drilled for easy installation |
· Industrial control systems & PLC modules
· Compact automation equipment & sensor interfaces
· Specialized instrumentation & test devices
· Embedded control boards for machinery & robotics
1. Custom Form Factor: Unique L-shaped design optimizes space utilization in compact device enclosures.
2. High-Density Integration: Precise trace routing supports complex circuit design and component miniaturization.
3. Mechanical Stability: Robust FR-4 material and mounting holes ensure reliable performance in vibration-prone environments.
4. Signal Integrity: Controlled impedance design minimizes signal loss and crosstalk for high-speed data transmission.
5. Cost-Effective Production: Scalable manufacturing process supports both prototype and mass production needs.
Q: Can the L-shaped PCB be customized to other irregular shapes?
A: Yes, we support full customization of board shape, including L-shaped, T-shaped, and other irregular profiles to match your mechanical design.
Q: What is the maximum layer count available for this PCB?
A: We can produce up to 16-layer PCBs with high-precision via structures to meet complex circuit design requirements.
Q: Does this PCB support lead-free assembly processes?
A: Yes, all our PCBs are RoHS-compliant and compatible with lead-free soldering processes for environmental and safety requirements.
